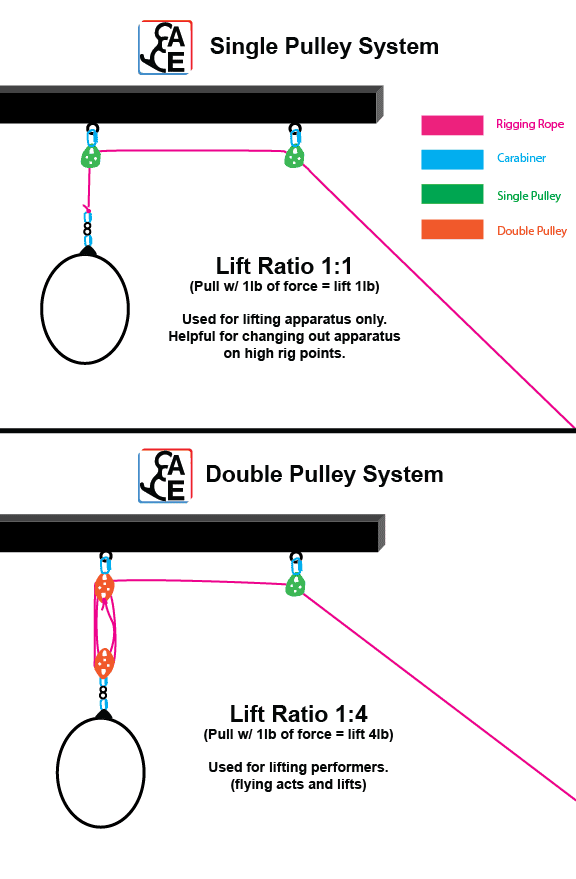

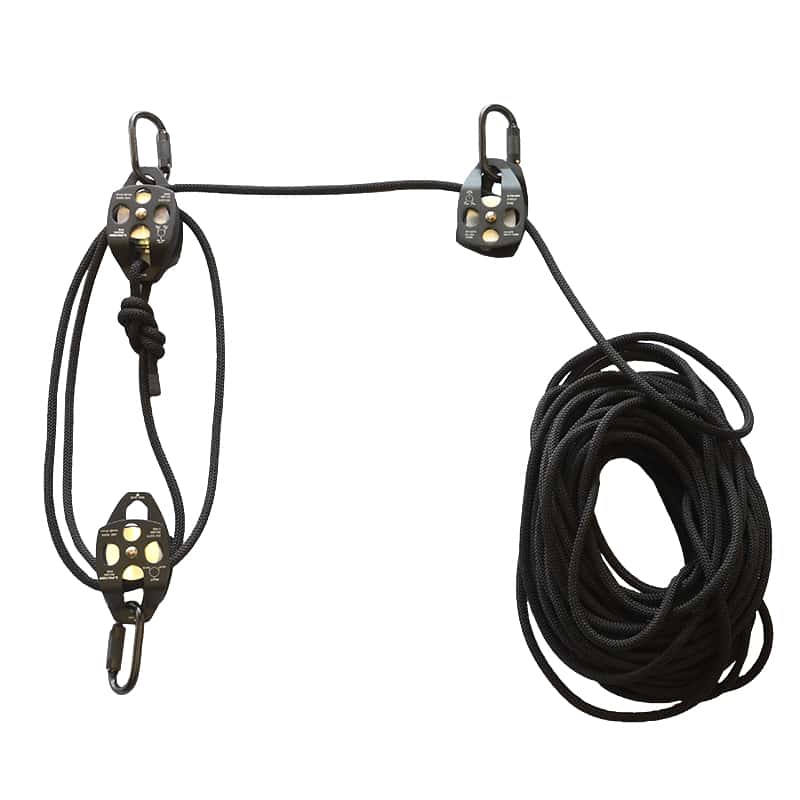

This is a double pulley system that can be used for lifting performers by hand with a 4:1 mechanical advantage.
This double pulley system includes:
This is a double pulley system that can be used for lifting performers by hand with a 4:1 mechanical advantage.
After rigging a double pulley system properly, you can easily raise and lower aerialists by hand to create dynamic flying acts. With a correct double pulley system you can lift 4 times as much weight with the same amount of work.
This double pulley system includes:

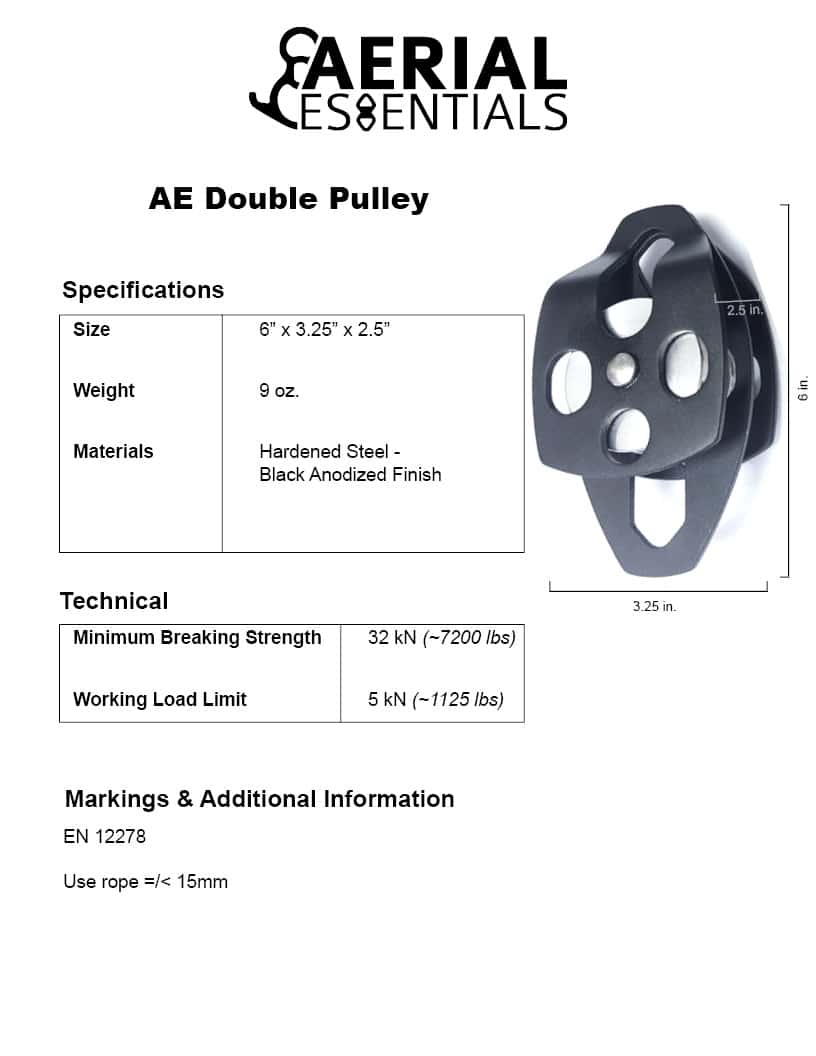

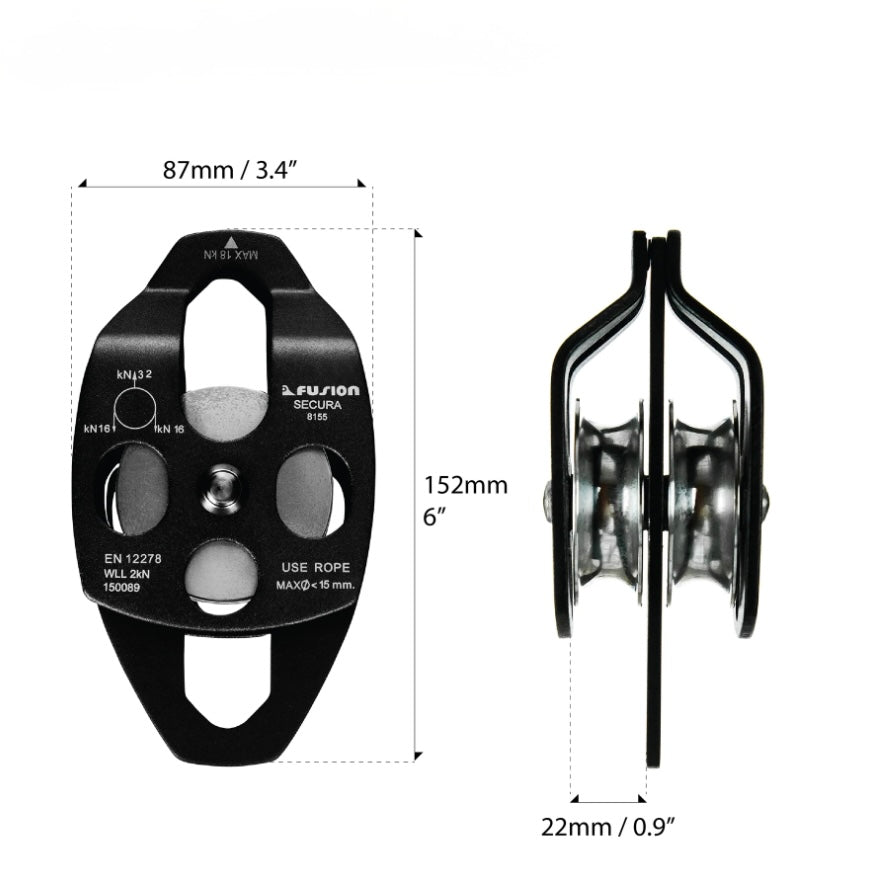

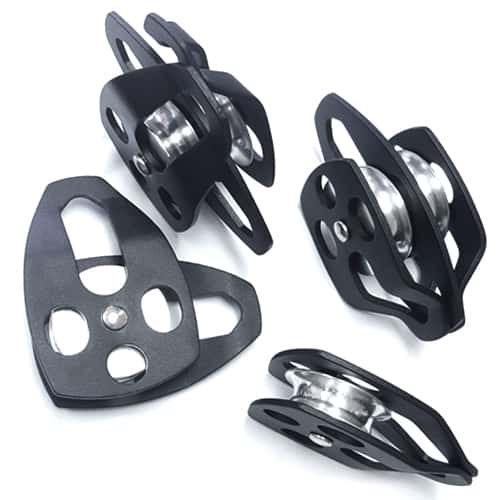

These pulleys feature: Rounded edges preventing rope friction and wear, swivel-open side plates allowing extremely easy use and setup, large attachment holes for multiple carabiners, enclosed stainless steel bearings for greater durability, and independent wheels for multiple pulley systems.

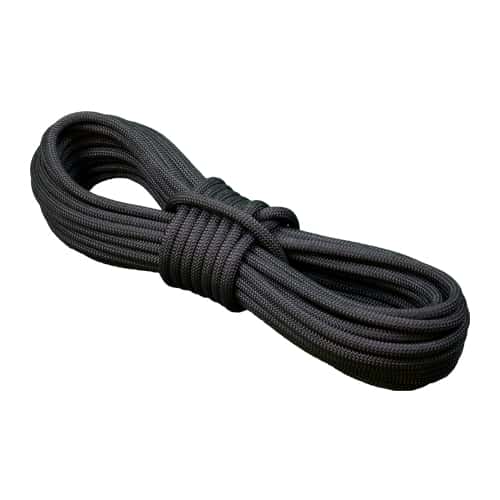

11mm, Black, Static Kernmantle Rigging Rope specifications:
-Strength rating over 7,300lbs (33.3 kN).
-Material: Polyester / Nylon Core Weight per meter: 90 g/m.
-Elongation: 2.2% at 1.35kn (300lbs) – 4.4% at 2.7kn (600 lbs) – 7.4% at 4.4kn (1000lbs).
-Certified to UL Life Safety Rope specifications, NFPA 1983:2012 Edition Standards and ANSI Standards for Life Safety Static Rope with an internal ribbon through out the entire rope.
Tips for choosing your rope length: Take the height of your rig point and multiple by 3, then add the horizontal measurement from your working space to your tie-off point.
If you also need to create a tie-off point for your pulley system, consider adding one of our Floor Plates to your order.
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
This is 11mm Static Kernmantle Rigging Rope. Perfect fit for our aerial pulleys and ready to support any aerial artist during the show. This rope is rated for over 7300lbs (33.3 kN).
We recommend this pulley system for use on portable aerial rig so that load is distributed evenly across your rig. This pulley system can also be used to lift performers on a portable rig.
This system is designed for use on our 20ft portable rig, and it can be used on most portable rigs of a similar height. This system does require points to clip into on the header and feet of your rig. If you need to create rig points on the header of your rig, we recommend our 12 inch sling loops.
This pulley system includes:

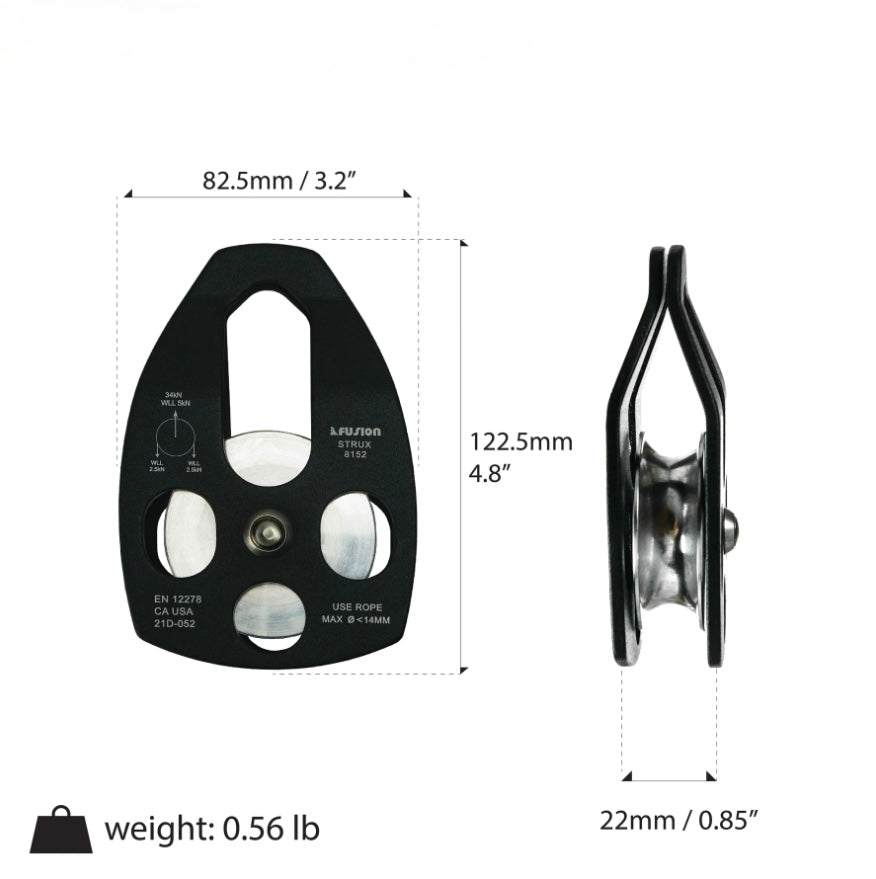

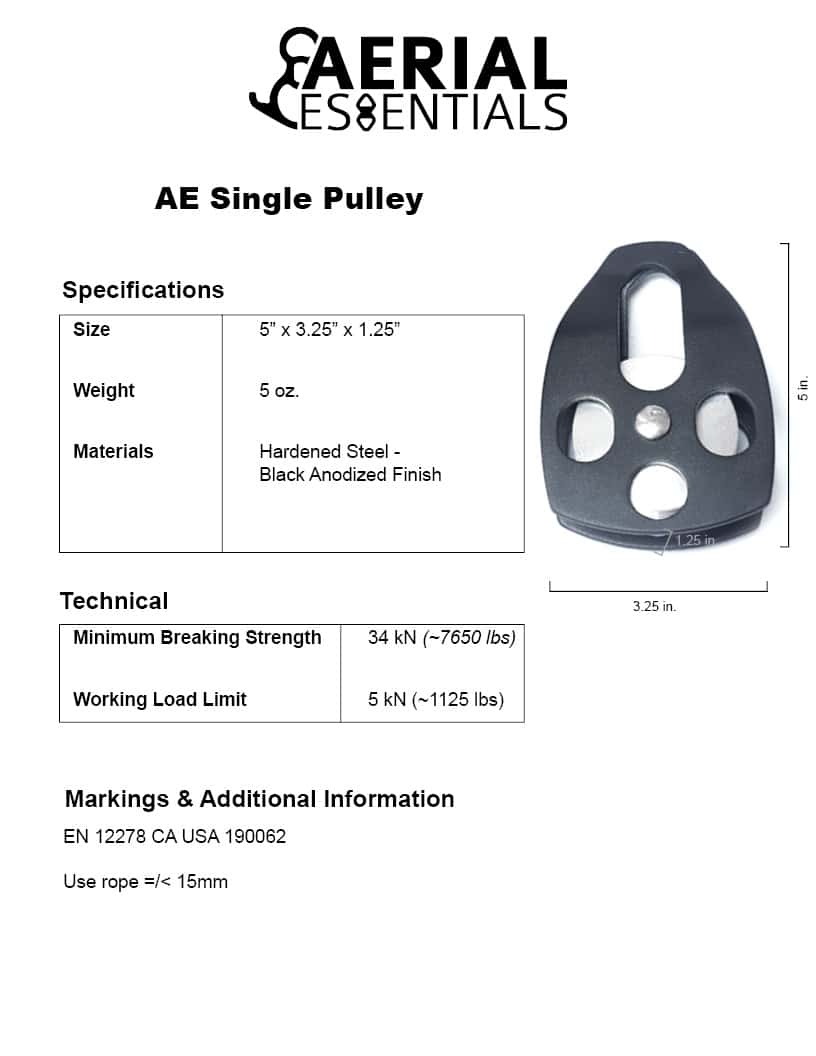

This is a single pulley system that can be used for raising and lowering equipment in high ceilings. This system will require that you already have a secure point on your floor or wall to tie off to.
This single pulley system includes:
Designed for up to 15mm rigging rope and ready to set up with our portable rigs or any flying setup.
They have a very long lasting a durable powder coating covering their aircraft aluminum alloy body.
These pulleys feature side swing openings for easier rigging and stainless steel ball bearings for smooth action.
